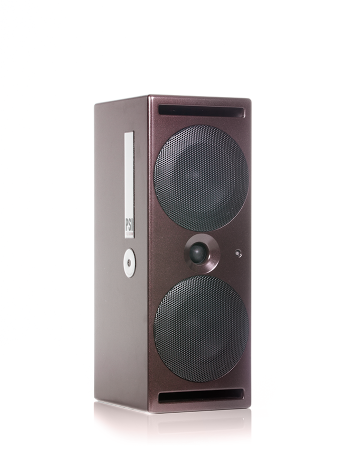

PSI Audio A214-M Red Студийный монитор

 Активный студийный монитор

Power RMS: 120 + 40W

Program Power: 160W

Input Impedance: Sym, 10k Ohms

Sensivity for 100 dB @ 1m: 0.775 V

Signal to Noise Ratio: -96 dBA

Continuous Max SPL@1m: 108 dB (single)

Input Overload: 24 Vpp

Program Max SPL@1m: 119 dB (pair)

Response at -6dB: 53 - 23000 Hz

Tolerances: ±2.0 dB (60Hz - 20kHz)

Distortion THD: < 1.2% (120Hz-12kHz)

Phase tolerances: ±45° (270Hz - 20kHz)

Dispersion (P.N. 4 - 16 kHz) at -6 dB: 90° x 60° (H x V)

System: 2 Way(s)

Crossover frequency: 1.8 kHz

Woofer's dim. Ext. / Diaphragm: 2x Ø 147 mm / Ø 104 mm

Tweeter's dim. Ext. / Diaphragm: Ø 100 mm / Ø 25 mm

Connectors: 1 x XLR F / 3P

Signal input:  1=GND, 2=(+), 3=(-)

Material: MDF

Dimensions W x H x D mm: 166 x 446 x 200

Gross / Net Weight: 11.2 / 10.2 kg

Voltage: 115/230V (50-60Hz)

Consumption Standby-Quiescent-Max: 1.2 - 5 - 150 W

Mean / Max Humidity: < 75% / < 90%

External Temperature: 5 - 40°C
